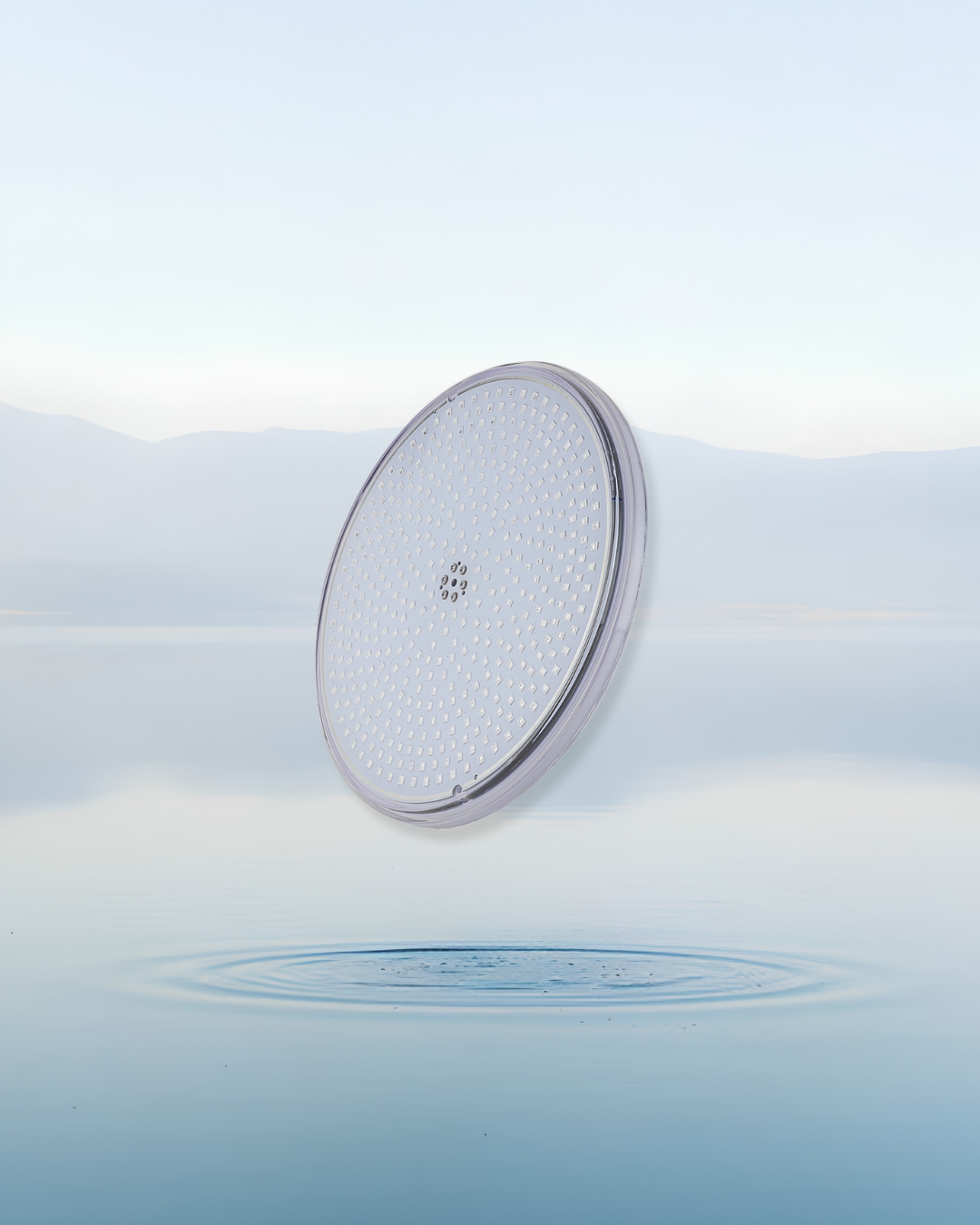

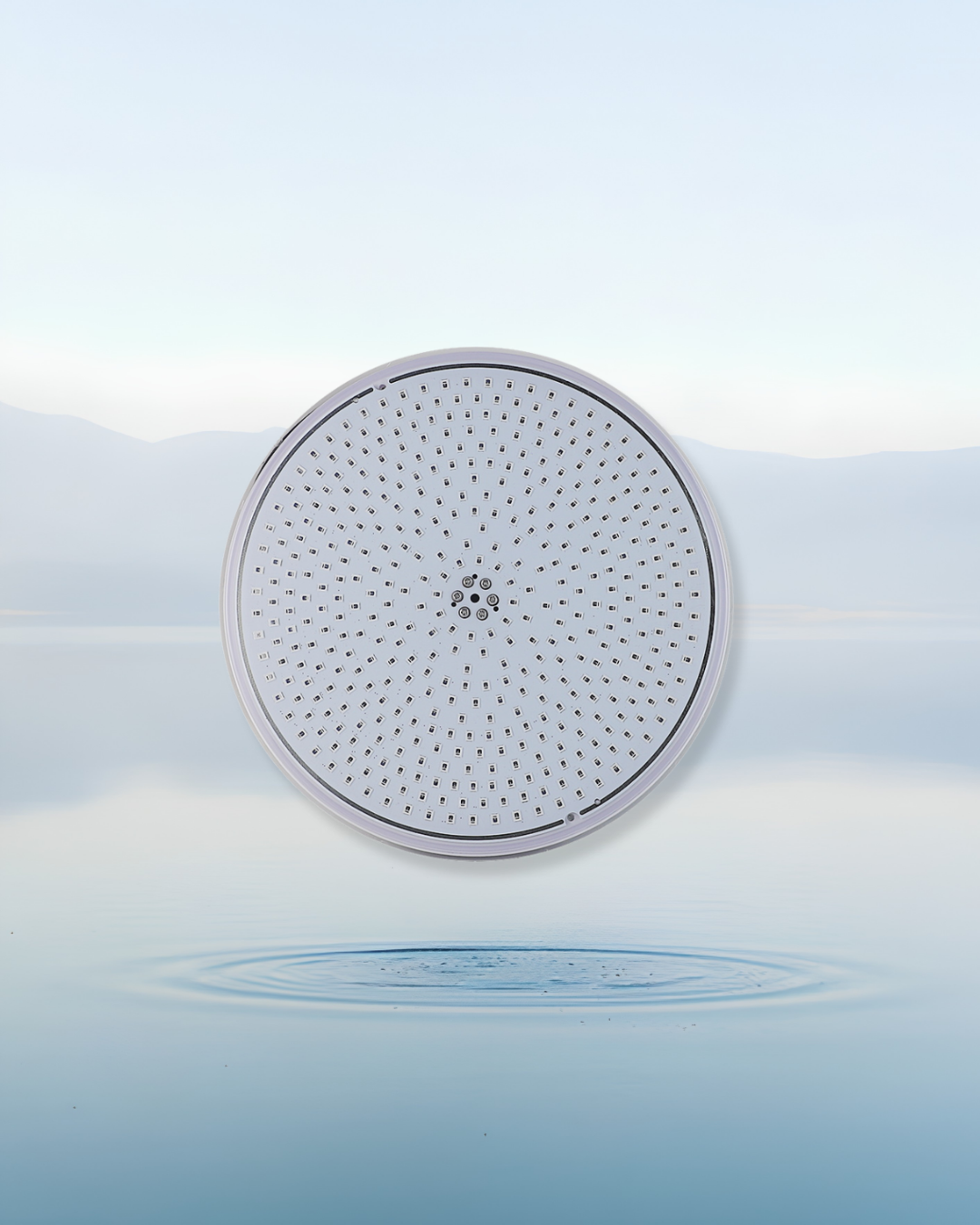

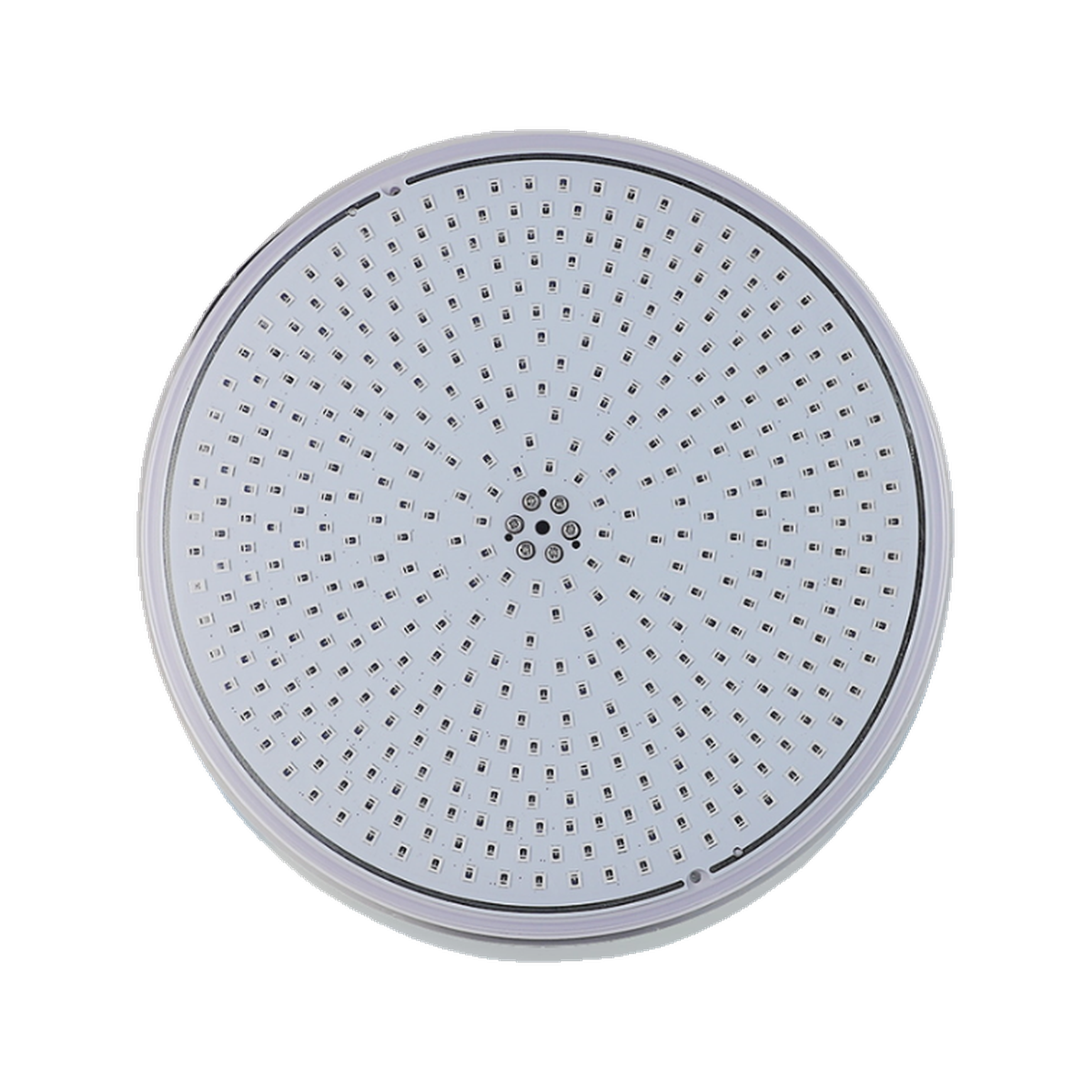

• Drops into an existing PAR56 niche in place of a sealed-beam halogen bulb
• Up to 80% more energy efficient than a halogen bulb, with a longer service life
• Resin-filled construction for underwater service
• Rated for 30,000 hours
• Installs in less than 5 minutes
• White models are on/off only and are not dimmable

1. Fit the lamp into the existing PAR56 niche in place of the sealed-beam bulb.
2. Position the light on the pool wall at approximately 10 cm below the water surface.
3. Keep the underwater connector within 30 cm of the light so it stays serviceable.
4. Power the light from a Class 2 industrial-frequency transformer (toroidal or square type only), such as the Moov MT100S.

Installation should be carried out by a qualified electrician in accordance with local code.

One year against manufacturing defects. Damage from misuse, accident, improper installation or voltage fluctuation is not covered.

• Use the Moov P56CLA (grey) or P56CLAW (white) universal adaptor to adapt the light to a 10 in. niche.
• The Moov MT100S 100 W transformer supplies 12 V AC and 14 V AC lines with an on/off switch for Moov low-voltage pool lighting.
• The Moov ML100C Bluetooth and WiFi controller adds smartphone control, timers and dimming to Moov LED pool lights.
