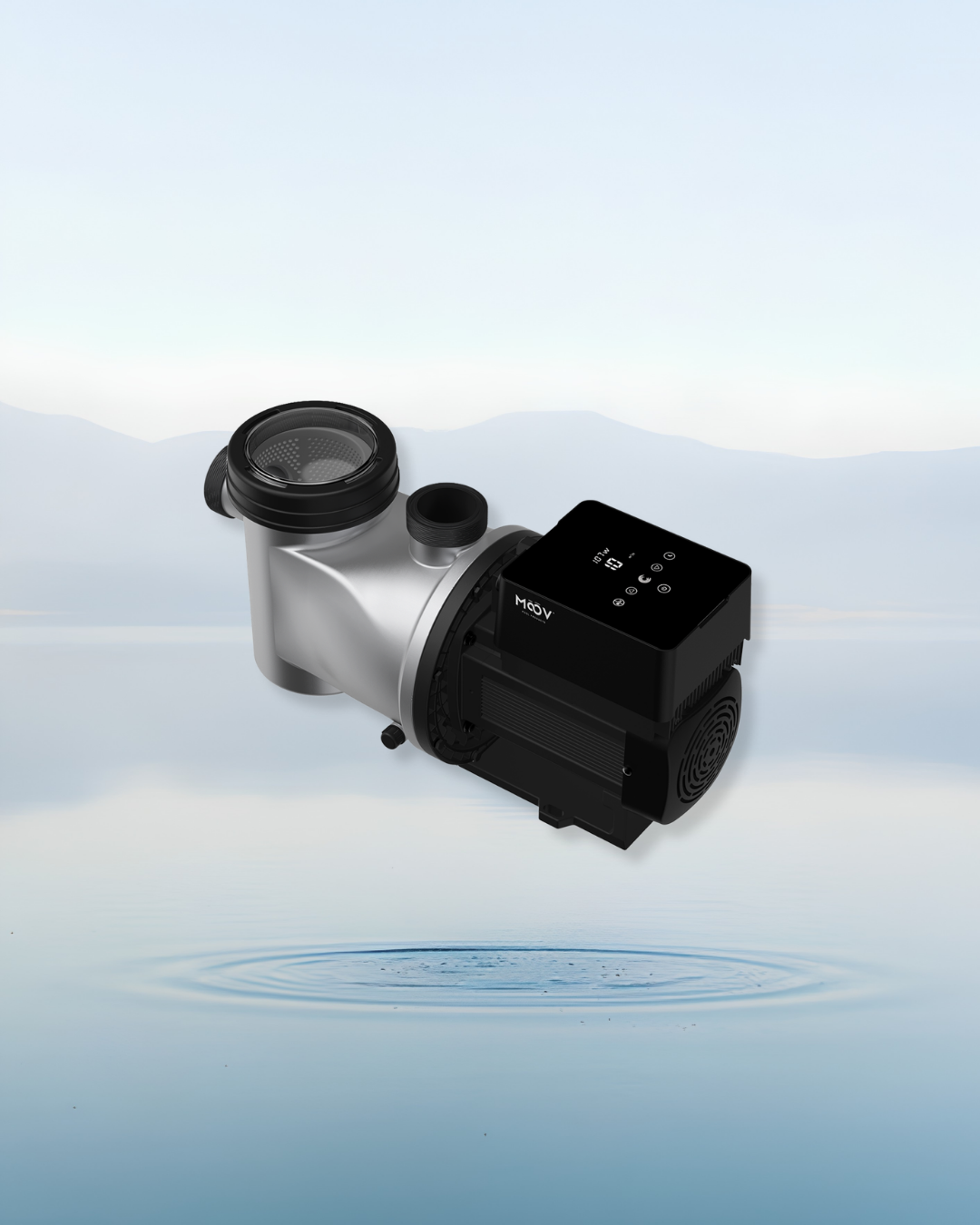

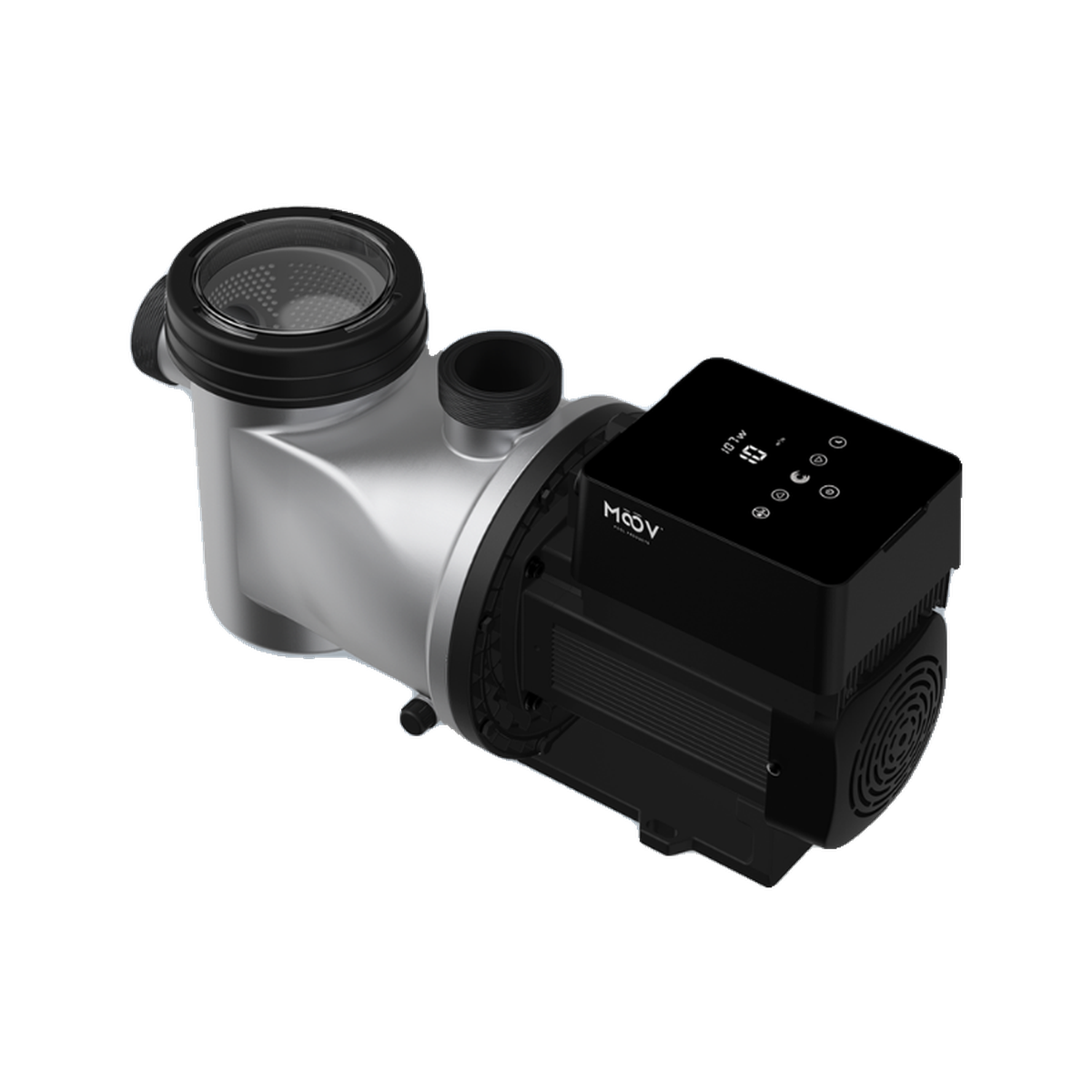

MOOV AI INVERTER POOL PUMP 1.25 HP

$1,199.00

Brand: Moov

Discover the Moov Ai Inverter Pump, which integrates self-learning and self-adapting speed variation in Pro Mode. Control its speed from 30% to 100% or utilize the overdrive mode at 120% to ensure self-priming. This pump is the first of its kind to automatically recognize the flow in the waterline and will automatically adapt. Did we say how silent it was? You won’t believe it until you hear it! Moov rates the Ai range at an average 50% less seasonal electrical usage compared with a single-speed pump.

Specifications

Product Code	MP15AIDV
Manufacturer	Moov Pool Products
UPC	628425350090
Pump Type	Variable-speed inverter pool pump with Wi-Fi
Total Horsepower	1.25 THP
Voltage	115 V / 230 V (dual voltage)
Frequency	50 / 60 Hz
Current	8.3 A at 115 V / 5.2 A at 230 V
Max Flow (Qmax)	110 US gpm at 115 V / 123 US gpm at 230 V
Max Head (Hmax)	66 ft
Default Adjustable Flow Range	35–110 US gpm
Speed Control	30% to 120% of capacity, adjustable in 5% steps
Union Size	Optional: metric (48.3 or 60.3 mm) or imperial (1.5" or 2")
Max Water Temperature	122 °F (50 °C)
Salt Pools	Salt concentration up to 3.5% (35 g/L)
Ambient Temperature	14 °F to 107.6 °F (−10 °C to 42 °C)
Max Installation Height	6.56 ft (2 m) above water level
Protection	Class F, IP55
Warranty	3 years, parts and labour

Key Features

Manual-Inverter mode — set the running capacity from 30% to 120% in 5% steps.
Auto-Inverter mode — the pump adjusts its capacity automatically between 30% and 120% according to the pipeline pressure.
Overdrive to 120% for self-priming and for pushing through high pipeline resistance.
Automatic self-priming on every start, counting down from up to 1500 seconds; it can be disabled or triggered manually.
Backwash / fast re-circulation function, adjustable in duration and running capacity.
Four daily timer programs, each set by flow rate or by capacity.
Built-in Wi-Fi. Moov’s manual pairs the pump with the InverFlow app over a 2.4 GHz network for remote control and real-time power-consumption monitoring.
External control through digital inputs and RS485 Modbus.
High-temperature throttling, undervoltage limiting and dry-run protection.
Flow can be displayed in m³/h, LPM, IMP gpm or US gpm.

Warranty

Moov states a complete 3-year warranty on parts and labour. Warranty begins at the time of purchase; where installation is delayed (a new pool build or a later shipment, for example) the shipping date must be documented for the warranty to start at commissioning. Warranty is only valid upon first install.
